THK SRG 100LC Linear Guides

THK SRG 100LC Linear Guides

We can also offer other brand linear guide: IKO INA HIWIN NB CPC NSK PMI TBI SBC ABBA

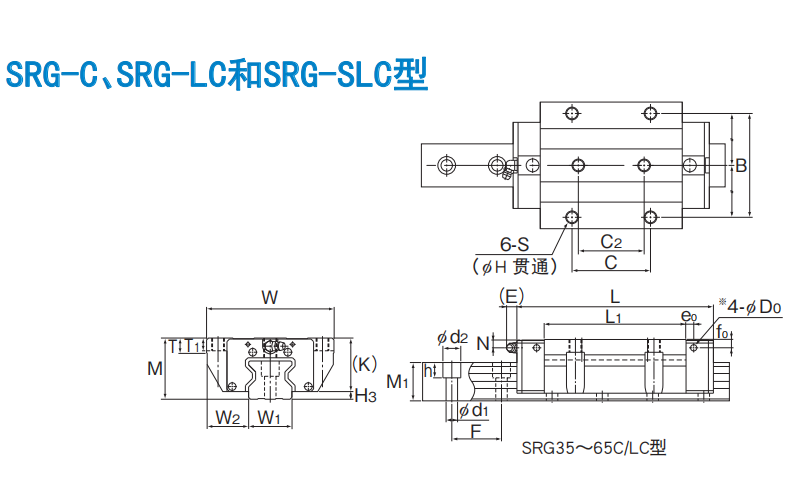

Model No.	Outer dimensions			Basic load rating
				Radial
	Height	Width	Length	Dynamic	Static
	M	W	L	rating	rating
	mm	mm	mm	CkN	C0kN
SRG 25C	36	70	95.5	27.9	57.5
SRG 30C	42	90	111	39.3	82.5
SRG 35C	48	100	125	59.1	119
SRG 45C	60	120	155	91.9	192
SRG 55C	70	140	185	131	266
SRG 25LC	36	70	115.1	34.2	75
SRG 30LC	42	90	135	48.3	108
SRG 35LC	48	100	155	76	165
SRG 45LC	60	120	190	115	256
SRG 55LC	70	140	235	167	366
SRG 65LC	90	170	303	278	599
SRG 85LC	110	215	350	497	990
SRG 100LC	120	250	395	601	1170
SRG 25R	40	48	95.5	27.9	57.5
SRG 30R	45	60	111	39.3	82.5
SRG 35R	55	70	125	59.1	119
SRG 45R	70	86	155	91.9	192
SRG 55R	80	100	185	131	266
SRG 25LR	40	48	115.1	34.2	75
SRG 30LR	45	60	135	48.3	108
SRG 35LR	55	70	155	76	165
SRG 45LR	70	86	190	115	256
SRG 55LR	80	100	235	167	366
SRG 15A	24	47	69.2	11.3	25.8
SRG 20A	30	63	86.2	21	46.9
SRG 20LA	30	63	106.2	26.7	63.8
SRG 20LA	30	63	106.2	26.7	63.8
SRG 15V	24	34	69.2	11.3	25.8
SRG 20V	30	44	86.2	21	46.9
SRG 20LV	30	44	106.2	26.7	63.8
SRG 65LV	90	126	303	278	599
SRG 85LC	110	215	350	497	990
SRG 100LC	120	250	395	601	1170
